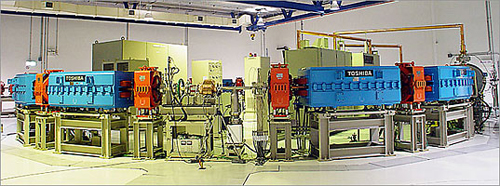

SYN
Major parameters
| Injection energy | 40 MeV |
| Maximum energy | 1.2 GeV |
| Circumference | 43.19 m |
| Superperiod | 6 |
| Lattice structure | FODO |
| Beam current | 30 mA |
| Repetition rate | 0.33 Hz |
| Harmonic number | 17 |
| Maximum gradient of quadrupole field | 4.8 Tm-1 |
| RF frequency | 118.000 MHz |
| Maximum RF voltage | 85 kV |
| Chamber pressure (with beam) | -6 Torr |
